| Batch Process Electro-chlorinator |
our products |
 |
|
Batch type Electro-chlorinator produces required chlorine in the form of Sodium Hypochlorite in 8 hours. Add salt and water and switch on the power supply. The system automatically shuts off after producing the required chlorine.

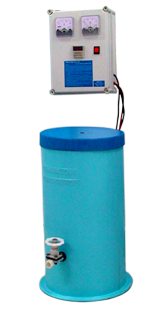

It comes with Reaction Tank fitted with the Titanium Electrolyzer and Power Supply Unit with Auto Timer Controls. Storage Tank and Dosing Pump are optional. Gas Chlorine, Liquid Chlorine or Bleaching powder dosage to disinfect water or waste water is being faced out all over the world.
Our Electro-chlorinator produces Liquid Chlorine (Sodium Hypochlorite) from common salt. It is safe and cost saving. |
|
|
|
Features
|
- Titanium Electrolyzer is fastened to the Reaction tank.
- Reaction tank is made of Fiber Glass with Vinyl Ester Resin
- Tank is provided with salt measurement and filtering system
- There is an Electronic timer to monitor the duration/time.
- Timer shuts off automatically during power outage and starts on power supply resumption, maintaining exact batch time.
- Eight hours batch time.
- The long life Power supply unit that can take wide voltage fluctuations and frequency changes.
|
|
|
Application
|
- Medium to large water treatment facilities for disinfection of drinking water.
- Waste water, Effluent and Sewage treatment.
- Hotels, Hospitals, Educational institutions for Drinking water.
- Water parks, Cooling water circuits, Fire water storage tanks.
|
|
|
Specification
|
| Model No. |
PBP 25 |
PBP 50 |
PBP 100 |
PBP 200 |
PBP 400 |
| Active Chlorine Generated |
32Grams/hr |
62Grams/hr |
120Grams/hr |
250Grams/hr |
490Grams/hr |
| Batch Time |
8 hours |
8 hours |
8 hours |
8 hours |
8 hours |
| Total Chlorine Produced |
250grams/ batch |
500grams/ batch |
1000 grams/ batch |
2000 grams/ batch |
4000 grams/ batch |
| Hypochlorite strength |
7 ~ 8.0 Gpl |
7 ~ 8.0 Gpl |
7 ~ 8.0 Gpl |
7 ~ 8.0 Gpl |
7 ~ 8.0 Gpl |
| NaOCl Produced Per Batch |
35 liters |
70 liters |
140 liters |
280 liters |
560 liters |
| Water that can be treated with 1 ppm of chlorine |
250,000 liters (approx.)per batch |
500,000 liters (approx.)per batch |
1,000,000 liters (approx.) per batch |
2,000,000 liters (approx.) per batch |
4,000,000 liters (approx.) per batch |
| Salt Consumed |
1.5kgs/per batch |
2.25kgs/per batch |
4.5kgs/per batch |
9 kgs/per batch |
18kgs/per batch |
| AC Power Consumed |
1.5kw/per batch |
3 kw/ per batch |
5 kw/ per batch |
10 kw/ per batch |
20 kw/ per batch |
|
|
Operation
|
- Add good clean salt (as indicated on the tank) in the space provided on the top of the Reactor tank.
- Fill the reactor tank with water, up to the indicated level.
- The water will dissolve the salt as it fills the tank.
- Switch on the power supply.
- Set the timer at 8 hours.
- The system will start and the Hypochlorite production will begin.
- After the preset time the power supply will shut off.
- Now the Sodium Hypochlorite is ready for dosing.
- Open the bottom Valve and remove all the sodium hypochlorite into a storage tank.
- The hypo can be dosed from the storage tank using a Dosing Pump.
|
| |
| |
Tell us about your requirements and our design team will be delighted to create a customized solution for you . Contact us here. |
|
|
|
