Continuous Production Electro-chlorinator our products
Automatic Electrochlorinators

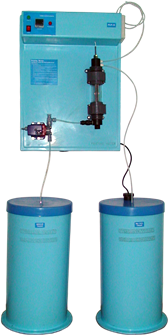

This is a continuous production Electro-chlorinator, a compact type,  with medium capacity to produce Sodium Hypochlorite continuously from salt water(brine) or sea water, through Electrolysis. Sodium Hypochlorite is a strong disinfectant that kills all pathogens (bacteria, virus, algae etc.) that lead to water borne diseases like cholera, typhoid, paratyphoid etc. Our system leaves some residual Sodium Hypochlorite in the water to prevent bacteria from getting picked up during storage or redistribution.

While the smaller capacity systems producing 10-50 grams/hr of chlorine are wall mounted; the larger capacity systems producing upto 250 grams/hr of chlorine are floor mounted. These systems are completely automatic and require minimal human intervention.



Features
  • Smaller – easier to install in confined spaces
  • Requires less manpower and human intervention.
  • Advanced and more efficient power supply.
  • Can take wide voltage and frequency fluctuations.
  • Microprocessor based controller.
  • Medium sized Hotels, Hospitals, and Educational institutions for Drinking water.
  • Disinfection in small Water parks, Cooling water circuits, Fire water storage tanks.



Application
  • Small to Medium water treatment facilities disinfection of drinking water
  • Hospitals & Clinics for disinfection and sanitization of instruments
  • Schools, Educational institutions for Drinking water
  • Villages and rural areas.



Specification
Model
No.
PCP
10
PCP
15
PCP
25
PCP
50
PCP
100
PCP 150
PCP 200
PCP 250
Active Chlorine
Generated
 10 gms/hr 15 gms/hr 25 gms/hr 50 gms/hr  100 gms/hr  150 gms/hr  200 gms/hr  250 gms/hr
Mounting Wall Wall Wall Floor Floor Floor Floor Floor
Water that can be treated with 1 ppm of chlorine
 10,000 ltrs/hr 15,000 ltrs/hr 25,000 ltrs/hr 50,000 ltrs/hr 100,000 ltrs/hr 150,000 ltrs/hr 200,000 ltrs/hr 250,000 ltrs/hr
Water Consumption 1.35 ltrs/hr 2.02 ltrs/hr 3.37 ltrs/hr 6.75 ltrs/hr 13.5 ltrs/hr 20.25 ltrs/hr 27 ltrs/hr 33.75 ltrs/hr
Salt
Consumed
 50 gms/hr 50 gms/hr 120 gms/hr 200 gms/hr  400 gms/hr 600 gms/hr 800 gms/hr 1 kg/hr
Power Consumed
 0.500 kwh 0.700kwh 0.900kwh 0.2 kwh  0.4 kwh  0.6 kwh  0.8 kwh  1 kwh
AC current Input
 230V, 50 Hz 230V, 50 Hz 230V, 50 Hz 230V, 50 Hz 230V, 50 Hz 230V, 50 Hz 230V, 50 Hz 230V, 50 Hz



Operation
  • Water is to be filled up to the recommended level.
  • Put good clean salt as indicated in the system and dissolve it.
  • Switch on the power supply.
  • The brine metering pump will start and pump brine into the Electrolyzer.
  • Now the cell converts the brine solution into Sodium Hypochlorite
  • The Sodium Hypochlorite (NaOCl) will flow out through a tube into the NaOCl tank.
  • A Salt meter indicates the concentration of salt.
  • The NaOCl tank is provided with a level controller
  • Once the NaOCl reaches the upper limit the level controller will stop the Electro-chlorinator System.
  • A NaOCl metering pump is independent of the system.
  • When the level of NaOCl reduces due to the dosing, the level controller will restart the system.


Tell us about your requirements and our design team will be delighted to create a customized solution for you . Contact us here.
