| Compact Electro-chlorinator |
our products |
.png "Compact Chlorinator") |
|

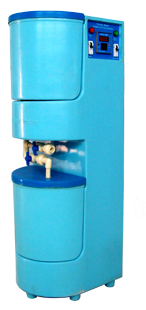

Compact Electro-chlorinator is a Batch type Sodium Hypochlorite generator, a strong disinfectant, by electrolysis process, from salt and water. It eliminates storing of Liquid/gas chlorine or Bleaching powder. All you need is Salt and Electricity. The disinfectant generated by ‘ Compuchlor ’ can be directly injected into water or waste water to disinfect up to 60000 liters of water per day depending on the contamination.
This equipment is a total system by itself, with Reaction tank, Hypo Tank, Power supply unit and Dosing pump, all integrated into one single unit. They are pre-wired and have all plumbing set-up ready to install any were without any civil foundation or support stands. |
|
|
|
Features
|
- A batch process system
- Extremely light weight and portable
- Reaction tank, Hypo Tank, Power supply unit and dosing pump are all integrated into one single unit.
- Ready to use system
- In eight hours the system produces 60 grams of active chlorine.
- Electronic timer with memory helps the system to complete the batch even if there is a power break-down.
- Power supply unit can take wide voltage fluctuations and frequency changes
- Storage Tank is provided with level switch to protect the dosing pump from dry run.
- Can disinfect upto 60000 liters of water per day at 1ppm dosage.
|
|
|
Application
|
- Small colony water treatment facilities for disinfection of drinking water
- Hospitals & Clinics for disinfection and sanitizing of instruments
- Schools, Educational institutions for Drinking water
- Villages and rural areas.
|
|
|
Specification
|
|
System Specification
|
| Model name |
: Compclor |
| Total Chlorine Produced |
: 60 grams/ batch |
| Batch Time |
: 8 hours |
| Hypochlorite strength |
: 7 ~ 8.0 Gpl |
| NaOCl Produced Per Batch |
: 8 liters |
| Salt Consumed |
: 250 grams/per batch |
| AC current Input |
: 230 V/ 110V,
50-60 Hz |
|
|
|
Material Specification
|
| Anode |
: Titanium |
| Cathode |
: Titanium |
| Coating |
: Platinum group of metal oxides like,Ruthenium and Iridium MMO Coated DSA, as per ASTMB 265 & 348 Gr. 1 & 2 |
| Control Module |
: Electronic Power Supply. Provided with Electronic timer with auto stop after 8 hours. |
| Reaction tank |
: Fiber Glass with Vinyl Ester Resin |
| Dosing Pump |
: Diaphragm operated Electronic metering pump. |
|
|
|
Operation
|
- Fill water up to the level marked in the tank
- Put 250 grams of salt in the tank and dissolve it.
- Plug in the system to the power outlet.
- Switch on the “Power On” switch
- Production starts, and remains on for 8 hours.
- Switches off automatically after producing 60 grams of Chlorine.
- Transfer the Sodium Hypochlorite to the Bottom Tank by opening the transfer valve.
- Switch on the Dosing pump.
- The Dosing pump will stop automatically when the hypo tank gets empty.
|
| |
| |
Tell us about your requirements and our design team will be delighted to create a customized solution for you . Contact us here. |
|
|
|
