| Brine Based Electro-chlorinator |
our products |
 |
|
Large capacity Electro-chlorinator for Water & Wastewater treatment, Cooling water treatment and other disinfection process requiring Chlorine, but procuring and storing Chlorine is cumbersome and hazardous. The best and convenient alternative is Sodium Hypochlorite.

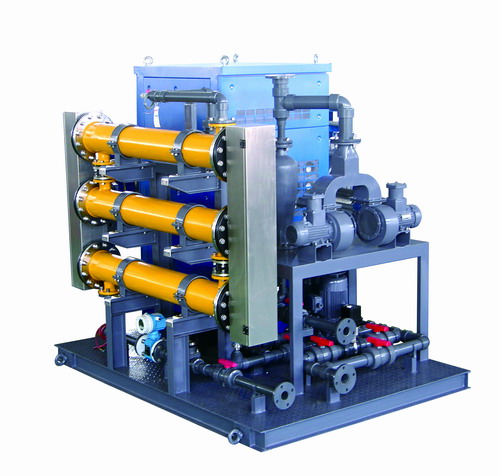

Continuous Production Electro-chlorinator are designed for high capacity production of Sodium Hypochlorite from brine solution. The system produces 0.6 to 0.8% Sodium Hypochlorite. Pre-assembled Skid mounted units are available too. |
|
|
|
Features
|
- The Electrolyzer cell is housed in a chamber made of FRP/Acrylic/PVC.
- Large Brine tank to hold salt stock for days.
- Brine agitator creates a saturated salt solution.
- Actuate Brine Dosing pump ensures a proper concentration.
- Advanced cell design ensures production of Sodium Hypochlorite.
- Compact cell cleaning system for periodic cleaning.
- Hypo tank level controller controls the production NaOCl.
- Hydrogen blower ensures safe operation and venting of hydrogen.
- PLC/ Relay based panel controls the automatic operation of the system.
- Built-in Heavy duty power supply for long hours of operation.
|
|
|
Application
|
- Medium to large water treatment facilities for disinfection of drinking water
- Waste water, Effluent and Sewage treatment.
- Re-chlorination in Water distribution network.
- Disinfection in Cooling water circuits, Fire water storage tanks
|
|
|
Specification
|
|
Model
No.
|
PCP
500
|
PCP 1000
|
PCP 1500
|
PCP 2000
|
PCP
5000
|
|
Active Chlorine
Generated
|
500 Grams/hr
|
1000 Grams/hr
|
1500 Grams/hr
|
2000 Grams/hr
|
5000 Grams/hr
|
|
Salt
Consumed
|
2 kgs/per hour
|
4.5 kgs/per hour
|
7 kgs/per hour
|
9 kgs/per hour
|
22.5 kgs/per hour
|
|
Hypochlorite
strength
|
7 ~ 8.0 Gpl
|
7 ~ 8.0 Gpl
|
7 ~ 8.0 Gpl
|
7 ~ 8.0 Gpl
|
7 ~ 8.0 Gpl
|
|
NaOCl Produced
Per hour
|
70 liters
|
140 liters
|
210 liters
|
280 liters
|
700 liters
|
|
Water that can be treated with 1 ppm of chlorine(approx.)
|
500,000 liters per hour
|
1000,000 liters per hour
|
1500,000 liters per hour
|
2000,000 liters per hour
|
5000,000 liters per hour
|
|
AC Power Consumed
|
2.5kw/per hour
|
4.5kw/per hour
|
7kw/per hour
|
9 kw/per hour
|
22.5kw/per hour
|
|
|
Operation
|
- Fill salt in the Brine Tank.
- Switch on the system in the control panel.
- Solenoid/Motorized valve will open and allow the water to flow into the system.
- Part of the water will flow to the Brine tank to dissolve the salt.
- Adjust the water flow into the Electrolyzer with the Flow control Valve and Rotameter, according to instruction.
- The Brine dosing pump starts and injects the saturated brine solution into the water line.
- In the Electrolyzer chamber the salt solution gets converted to sodium hypochlorite
- The outlet of the Electrolyzer is connected to the Hypo storage tank.
- A blower connected to the storage tank blows out the Hydrogen build, through a vent tube.
- A temperature sensor provided in the Electrolyzer switches off, when the temperature of Sodium Hypochlorite produced, exceeds the preset temperature limit, giving a cooling off period for the Electrolyzer.
- A level switch provided in the Hypochlorite storage tank stops production of Hypochlorite once the storage tank is full.
- It automatically turns the sodium hypochlorite generator on when the level in storage tank is reduced.
|
| |
| |
Tell us about your requirements and our design team will be delighted to create a customized solution for you . Contact us here. |
|
|
|
